Plain Film Inspection System:Hawk Eyes

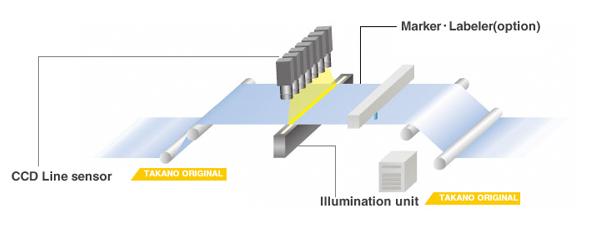

This is an optical inspection system using line sensors.
The system with high-performance cameras provides quick inspection, so that it is ideal for quality control that is under increasing severity.
This system has been delivered to wide industries including electronics, packaging and energy industries, and is especially contributing to the production of cell phone, TV set and solar cell.
Features
Originally developed line sensor camera with the best speed in the industry and processing board to balance quick inspection and fine resolution.
| Line speed | Hawkeyes one | Hawkeyes ELITE | Commercial Model 4000pix 40MHz |
| 10m/min | 1.6μm 4.9μm | 3.3μm 20.0μm | 17.9μm |
| 50m/min | 8.0μm 24.6μm | 16.5μm 100.0μm | 89.6μm |
| 100m/min | 16.0μm 49.2μm | 33μm 200.0μm | 179.3μm |
Image processing clearly discriminate good and defective areas.
Specifications
Targets
Holes: Coat loss, Pinhole
Stripe Defects: Application stripe, Wrinkle, Roll Streak
Irregularities: Foreign particle, Scratch, Bubble, etc.
MURA (Unevenness): Application MURA, Repellency, etc.
Hardware
| CCD Effective Line Pixels | 8,000pix, 16,000pix |
|---|---|
| Control/Statistics PC | FA Spec. (OS: Windows) |
Software*
| Inspection | Inspection judgment, Noise reduction, Spatial filter,Defect map, etc. |
|---|---|
| Review | Defect list (Map/Coordinates), Defect image, Trend graph, Statistics, etc. |
| Hawk view duplex | Multiple review connection management, Communication control, etc. |
※Compatible with customization such as image display and functional addition
Applications
- Electronics
Polarization plate, AG/AR/LR film, Phase difference film, etc. - Energy Industry
Back sheet, Filler, Separator, Electrode, etc. - General packaging
Wrapping film, Barrier film, Laminate film, etc.
